Cenote Steel Suspension Gravel Bike Build Deposit or Frameset
from $1,995.00

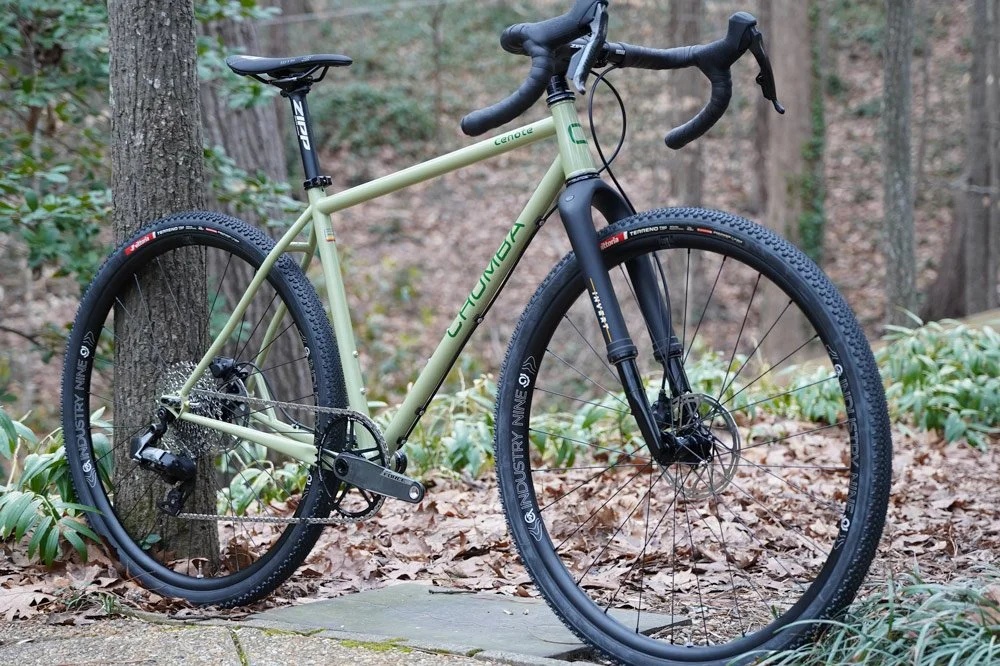

The suggested fork model is the Invert CS 40mm travel option with lockout. We can also build the Cenote with the Fox Tapercast or Rockshox Rudy forks.

The Cenote steel comes our race performance tubeset: Velospec Heat Treated (USA made) Tubeset. For lighter frame weight and increased performance characteristics. The tubing is air hardened at weld zones, which increases its fatigue strength and resistance to external forces. While heat treatment adds strength, these tubes offer increased elongation % for a compliant ride. The stuff of magic? We think so.

Finish:

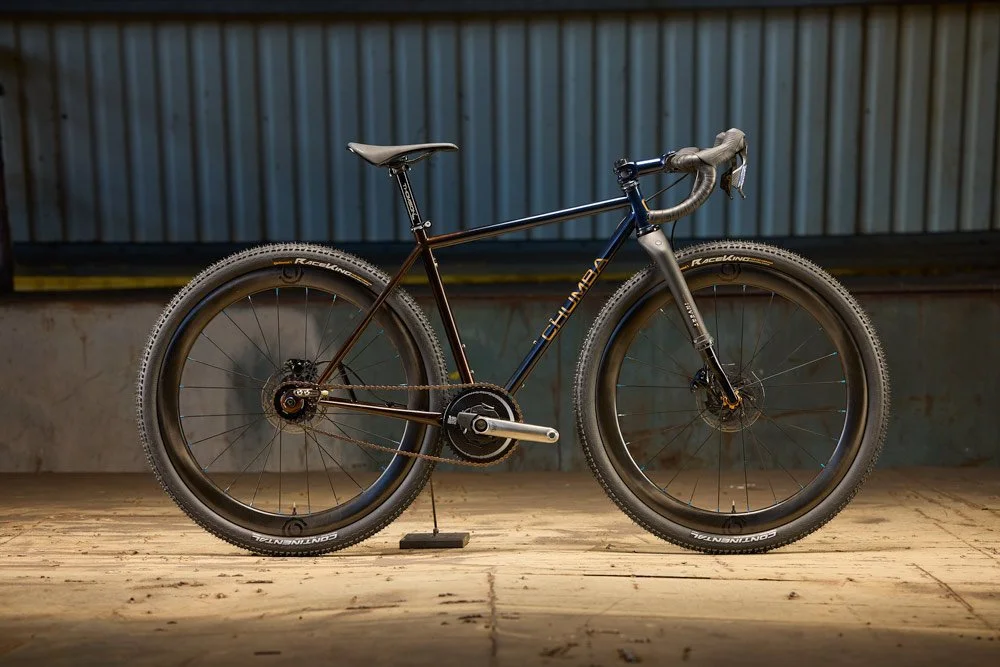

The standard included finish is a powdercoated finish with decal graphics. Custom fork cerakote (C series) is usually $250. We can also cerakote the frame starting around $750. Custom finishes are planned after a frameset is on deposit.

Images courtesy of the Radavist

Many gravel events are combining gravel, road, jeep road chonk and singletrack. The need for a fast and capable gravel bike that both inspires confidence and is a blast to race/ride was the inspiration for adding the Cenote to our lineup.

The geometry blends concepts from our Terlingua, SL, and Yaupon models. The Cenote is built around a longer front center with a longer TT, slacker HTº and a touch steeper STº  than our Terlingua Gravel Bike. The Cenote is best paired to shorter stems 50-80mm, wider bars and tires 42-50mm. The result is the ultimate underbike!

The geometry has just been released! Scroll below to view.

Future Proofing:

  • A quick change of the sliding dropout insert and you can run UDH, T-Type, singlespeed, or traditional mount derailleurs.

  • The frameset will clear a 700x50mm tire

  • Big chainring clearance 44T on normal chainlines

  • Fits common axle to crowns of all the big hitter suspension fork companies, Cane Creek, Fox, Rockshox

Plan a Complete Cenote Steel or Titanium Build Below

Cenote Steel Geometry Chart

Measurements with Cane Creek Invert Suspension Fork. 40mm travel, 435mm Axle to Crown Fork @ 45mm Offset. Frame is compatible with 30-50mm Travels. Geo Customizations are availaible in the dropdown above.

Standover is measured 90mm forward of Bottom Bracket. Using a 700x50mm tire for reference. If using a smaller tire you will have more standover.

Measurement 50 52 54 56 58 60
Suggested Rider <5'3" 5'4" - 5'7" 5'8" - 5'10" 5'10" - 6" 6 - 6'1.5" 6'2 - 6'3"
Effective Top Tube 524 542 562 578 598 618
Head Tube Angle 70° 70° 70° 70° 70° 70°
Head Tube Length 90 100 120 140 160 180
Seat Tube Angle 74.5° 74° 74° 74° 74° 73.5°
Seat Tube Length 430 465 490 495 520 545
Chainstay Length 425-445 425-445 425-445 425-445 425-445 430-450
Bottom Bracket Drop 68 68 68 68 65 65
Wheelbase 1015-1035 1028-1048 1050-1070 1067-1087 1084-2004 1111-1131
Standover Height 28.7" 29.7" 30" 30" 31.9" 32.7"
Reach 370 380 395 405 415 430
Stack 555 564 583 602 618 637
