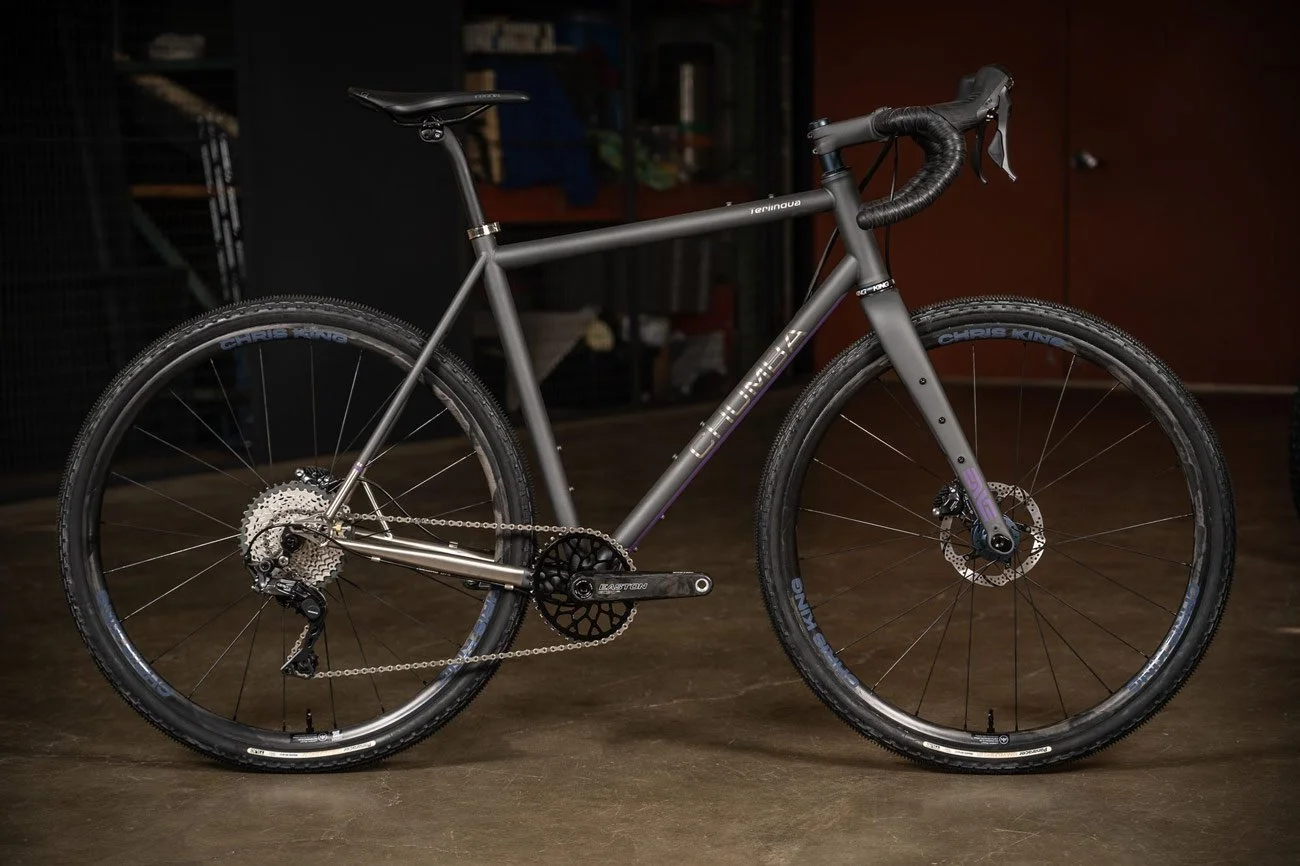

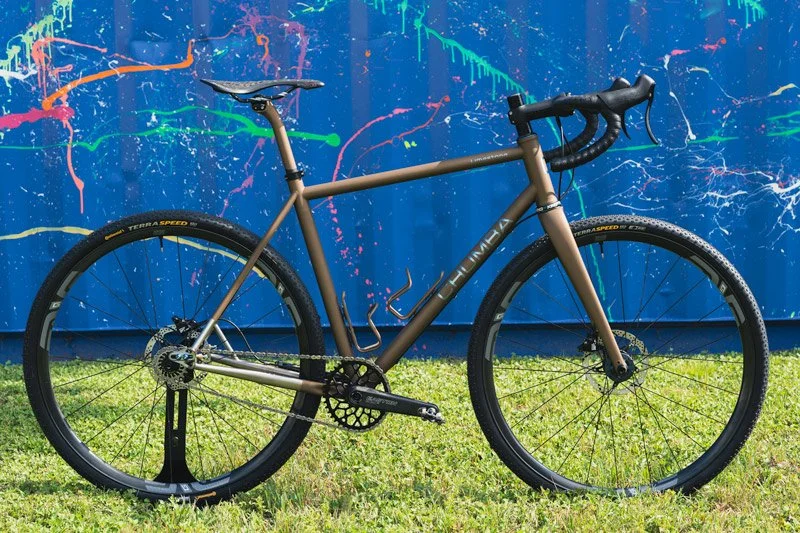

Terlingua SL Titanium Gravel Bike

The Terlingua Titanium SL is our race focused titanium gravel/all-road bike. The frame features the highest caliber of titanium tubing materials and a custom S-bend rear triangle with double butted oval chainstays and a threaded T47 bottom bracket. It can be configured with 1x or 2x, electronic or mechanical drivetrains, or set up singlespeed.

Compared to our other Terlingua models the SL geometry trends towards a more aggressive geo create a responsive race focused geometry. Spirited group ride? Gravel race? That’s what we are after here. Our handmade titanium 3/2.5 tubing frame is a smooth ride. A little comfort equals more endurance on race day. Compliance in the frame keeps you connected to the terrain letting you track through rough corners and descents. Oval chainstays transfer more power through the drivetrain.

We’ve maximized compatibility with tires up to 700x50 and 1x and 2x cranksets. Our sliding dropouts offer a solid platform for adapting your ride feel whether geared or set up singlespeed.

    • The Terlingua titanium is designed to perform on long endurance gravel rides and races across varied terrain.

    • Reach, head tube and seat tube angles place the rider in an effective position to attack climbs and sprint.

    • The titanium tube-set is tuned for weight savings and responsiveness that accelerates fast with stable handling both climbing and descending.

    • Compared to our steel Terlingua the Titanium frame has similar dampening capabilities, but returns to its original position faster resulting in a responsive feel.

    • This balance of strength and suppleness paired to the Terlingua’s geometry is designed track through rough gravel grinding conditions.

    • Size specific geometry changes and bottom bracket heights fine tune the balance point for cornering to maximize fit performance.

    • Handmade to order with many customization options

    • Built from domestic sourced Certified Aerospace Titanium 3/2.5 Tubing

    • Paragon Machine Works Flanged Sliding Dropouts,

    • PMW Machined Head Tube for tapered 1.5” or straight forks

    • PMW T47 Threaded 68mm Bottom Bracket for use with external cups.

    • Clean thoughtful external cable routing or custom options for internal

    • Maximum tire and drivetrain clearances for a wide range of options and mud clearance

    • All tubes are heat sunk and argon purged when welded to prevent distortion and material thinning

    • Top tube bag mounts included

  • The Terlingua gravel bike is designed to be extremely compatible with a wide range of tire sizes and drivetrains. Frames come with dropout inserts, rear axle and seatpost clamp.

    • Fork: 395mm/398mm axle to crowns are optimal. ENVE Adventure Gravel and G Series forks recommended

    • Headset S.H.I.S.: ZS44 Upper/ EC44 Lower for Tapered 1.5” or Straight Forks

    • Hub Spacing: 142x12

    • PMW Sliding Dropout Options: Geared, single speed or Rohloff, thru axle or quick release

    • Rear Axle: 142x12x1.5 thread pitch (164mm total length) (comes with frame)

    • Bottom Bracket: 68mm T47 Threaded for External Bottom Bracket

    • Seat Post: Post 27.2mm / Clamp 34.9mm (comes with frame)

    • Braking: Available with flat mount 160mm or post mount 160mm PMW dropout inserts

    • Cable Routing: Standard cable routing goes under the down tube via PMW bolt on cable guides and then onto the chain-stays.

    • H20 Capacity: 3 bottles on all sizes

    • Fenders: The frame does not have fender mounts. Traditional fenders are not recommended since this is a gravel focused bike.

    • Rack mounts: Optional customization.

    Chainrings/Cranks:

    • 1x 46T round max

    • 1x 44T oval max

    • 2x 52x38T max

    • Chain-line: Road to standard MTN chain lines

    • Q Factor Clearances: Clears Dura Ace and Force AXS cranks.

    • Powermeter: We recommend Easton or SRAM

    Suggested Stem Lengths:

    • On size 50cm (50-70mm)

    • On size 52cm (60-90mm)

    • On sizes 54-56cm (70-110mm)

    • On sizes 58-60cm (90-120mm)

    Max Tire Clearances:

    • 700 x 42 (in all dropout positions)

    • 700 x 50mm tires (in dropout rear position)

    • 650b x 47mm tires (in all dropout positions)

    • 650b x 50 tires (mid dropout and rearward)

  • New offering! Sliding dropouts come standard or in our customization menu add Paragon Machine Works’ brand new UDH Integrated FM Dropout.

Why choose the PMW Sliding w/Flat Mount dropout option? (included in frame price)

Use this dropout to gain 20mm of adjustable chainstay and wheelbase. This feature offers the widest range of tire fitment and ride characteristics. The 415mm chainstays position equals a more responsive ride or move it out up to 435mm to make the ride more stable. Both sides of the dropout have replaceable Flat Mount inserts/hangers. Bonus, if the mood strikes, they also allow you to run the bike as a singlespeed.

Why choose the PMW Direct UDH Integrated Flat Mount dropout option? (option in frame customizations +$250)

Use this to gain access to the SRAM Universal Derailleur hanger, “UDH”. Some riders aesthetically prefer the brake caliper mounted on the chainstay. It certainly looks tidy! What you lose in adjustability when compared to the Sliding Dropout is made up for with a lighter weight dropout system.

New options for ENVE In-Route Fork and cockpit kits/builds and we are adding a size 62cm frame to the size options!

Terlingua SL Titanium - Frame & Fork or Custom Build Deposit
from $4,120.00

Order your frame below, or request a free quote on a complete or partial build. Each frame is handmade to order. Color choices, frame customizations and component kits can be added at anytime before production begins. Add a G Series or Adventure fork for a frameset discount.

For those going for the ENVE In Route System, the deposit includes the In-Route AR Fork, ENVE Stem and Handlebar, Chris King Aeroset in your color choice, and the frame customization. After placing your order we will plan your stem and handlebar selections from the ENVE lineup. Note we only offer electronic 12 Speed Di2, AXS, or Campy EPS drivetrains with the In-Route system for ease of use.

Frame price includes many finish options.

Size:
Frameset:
Quantity:
Add to Cart
Terlingua SL Titanium Frame Customizations
from $0.00

Frame Customizations

Add custom geo, internal routing, change dropout style & more. Internal routing is cleanest with AXS, Di2 or singlespeed drivetrains.

Customization::
Quantity:
Add To Cart

Choose Frame Finish

from $0.00

Raw Titanium Finishes

Choose from a range of included graphics on a brushed frame or add anodizing. For a limited time we are offering anodized upgrades for free with all new Titanium frame orders.

Each Ti-Dye anodized finish is one of a kind. Contact us for examples or check out our instagram. Let us know which style you like and we’ll create something based on that, or let us know builder’s choice! Additional anodizing can be added to top tubes or seatstays on request for an upgrade cost.

Graphics:
Quantity:
Add To Cart
from $60.00

Cerakote Painted Frame Finishes

To get creative with color on your frame we can choose from nearly any H Series Cerakote Color in the following layouts or locations.

Custom Paint:
Quantity:
Add To Cart
All of our complete bikes are built with a custom selection of components. We pride ourselves on listening, understanding your riding goals & working with you to craft the perfect blend of components & customizations.
— Chumba USA | support@chumbausa.com

Terlingua Titanium SL Geometry Chart

Measurements with Enve G Series Fork. 395mm Axle to Crown Fork @ 50mm Offset. Frame is compatible with 47-55.5mm Offsets. Geo Customizations are availaible in the dropdown above.

Standover is measured 90mm forward of Bottom Bracket. Using a 700x38mm tire for reference.

Measurement 50 52 54 56 58 60 62
Suggested Rider <5'3" 5'4" - 5'7" 5'8" - 5'10" 5'10" - 6" 6 - 6'1.5" 6'2 - 6'3" 6'3" - 6'5"
Effective Top Tube 520 535 550 565 580 600
Head Tube Angle 71.5° 71.5° 72° 72° 72° 72°
Head Tube Length 100 130 140 160 180 200
Seat Tube Angle 74.5° 74° 74° 73.5° 73.5° 73.5°
Seat Tube Length 465 500 515 530 545 575
Chainstay Length 425-445 425-445 425-445 425-445 425-445 425-445
Bottom Bracket Drop 72 72 72 72 70 70
Wheelbase 997-1017 1008-1028 1019-1039 1029-1049 1045-1065 1066-1086
Standover Height 28.4" 29.8" 30.3" 30.9" 31.8" 32.75"
Reach 370 373 384 389 399 413
Stack 534 562 574 593 609 628

Ordering

The Terlingua Titanium Gravel Grinder is available as a frame only, frame set, in complete build kits, and partial builds. Custom component configurations can be quoted on request here: Chumba Custom

You can order a Terlingua direct from Chumba over the website using the drop-downs on this page, over the phone, in person @ our Headquarters or from an approved Chumba Dealer. We welcome calls (512) 494-4944 and emails for immediate questions.
