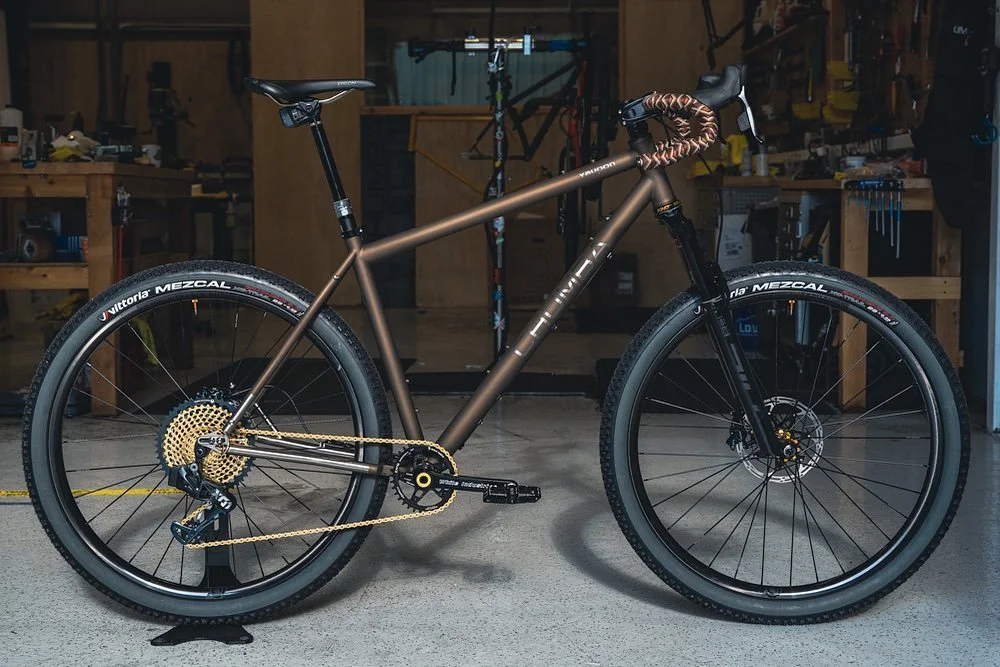

The Yaupon Titanium is at home tackling technical trails, but foremost it’s meant for the longest rides in the most comfortable and fun way possible! Featuring:

• A slack 68º head tube finds the flow in rough terrain.

• A steep seat tube angle and other geo numbers combine to keep the front end planted under difficult climbs.

• A balanced bottom bracket is positioned to bring out the rest of the geometry and plant the bike in corners whether seated or floating.

• The bike is spirited out of the saddle and rather huckable in the tech, but the comfort of the design allows for a long day seated.

• The wheelbase offers great maneuverability picking lines on the trail and threading through tight corners.

• Tune-able ride quality, each order receives a consultation to plan your frames tubing to optimize your ride experience.

• Made in USA quality, handmade to order.

• S-bend seat-stays are custom diameter to each frame size for the smoothest ride.

• Titanium 3/2.5 Aerospace Grade Domestic Tubing throughout

• PMW hooded sliding dropouts offer 20mm of adjustable wheelbase/chainstay length.

• Clean thoughtful cable routing along with top tube bag mounts & cargo cage mounts under down tube.

• Flawless frame miters, all tubes are heat sunk and argon purged when welded to prevent distortion and material thinning.

• Machined head tube for tapered or straight forks.

• Many frame customizations available.

The Yaupon titanium is designed to be extremely compatible with a wide range of tire sizes, hub options and fork lengths. Frames come with sliding dropout inserts, rear axle, and seatpost clamp.

• Fork Travel: Optimized for 120mm travel w/ 44mm offset and rigid forks 483mm-490mm axle to crown (A2C)

• Best 120mm suspensions forks: Fox Stepcast 34 120 or Standard 34 120, Rockshox SID 120 or Pike 120

• Best 100mm suspension forks: Fox Stepcast 34 100mm

• Best rigid fork: Enve MTN Boost Carbon

• Suggested Stem Lengths: 35 - 80mm

• Headset S.H.I.S.: ZS44 Upper/ EC44 Lower for 1.5” Tapered or 1 1/8” Straight Forks

• Hub Spacing: 148x12 Boost

• Drivetrain / PMW Sliding Dropout Options: Geared, SRAM Transmission or Single Speed

• Rear Axle: 148x12x1.5 thread pitch (170mm total length) (comes with frame)

• Bottom Bracket: T47 73mm Threaded

• Chainring max/Chain-line: 1x 36T oval or 38T round on 51/52mm Boost chain-line

• Seat Post: Post 31.6mm or for 27.2mm use a Cane Creek Alloy Shim

• Seat Post Clamp: 35mm (comes w/ frame)

• Dropper Port: Dropper port on non-driveside w/ rubber housing guide

• Cable Routing: Standard cable routing goes under the down tube via PMW bolt on cable guides and then onto the chain-stays

• H20 Capacity: 3 bottles on all sizes.

• Cargo Mounts: Includes Top Tube mounts and under down tube cargo mounts for 3 bolt style cages

• Rack mounts: Optional customization to add mounts.

Max Tire Clearances:

• 29 x 2.4” (in all dropout positions M, L, XL, mid-rearward on size small)

• 29 x 2.6” (mid dropout and rearward)

• 27plus x 2.8"

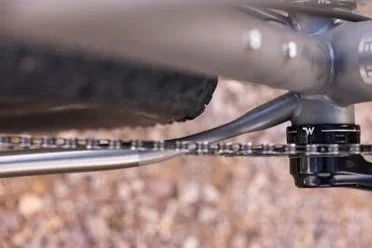

New offering! Option to add our titanium 3-D chainstay yoke is designed in house & printed in the USA of 6/4 Ti. Shaped for maximum strength & crank/mud/tire clearance. FEA strength tested and heat treated to Rolls Royce Certified to aerospace specifications.
