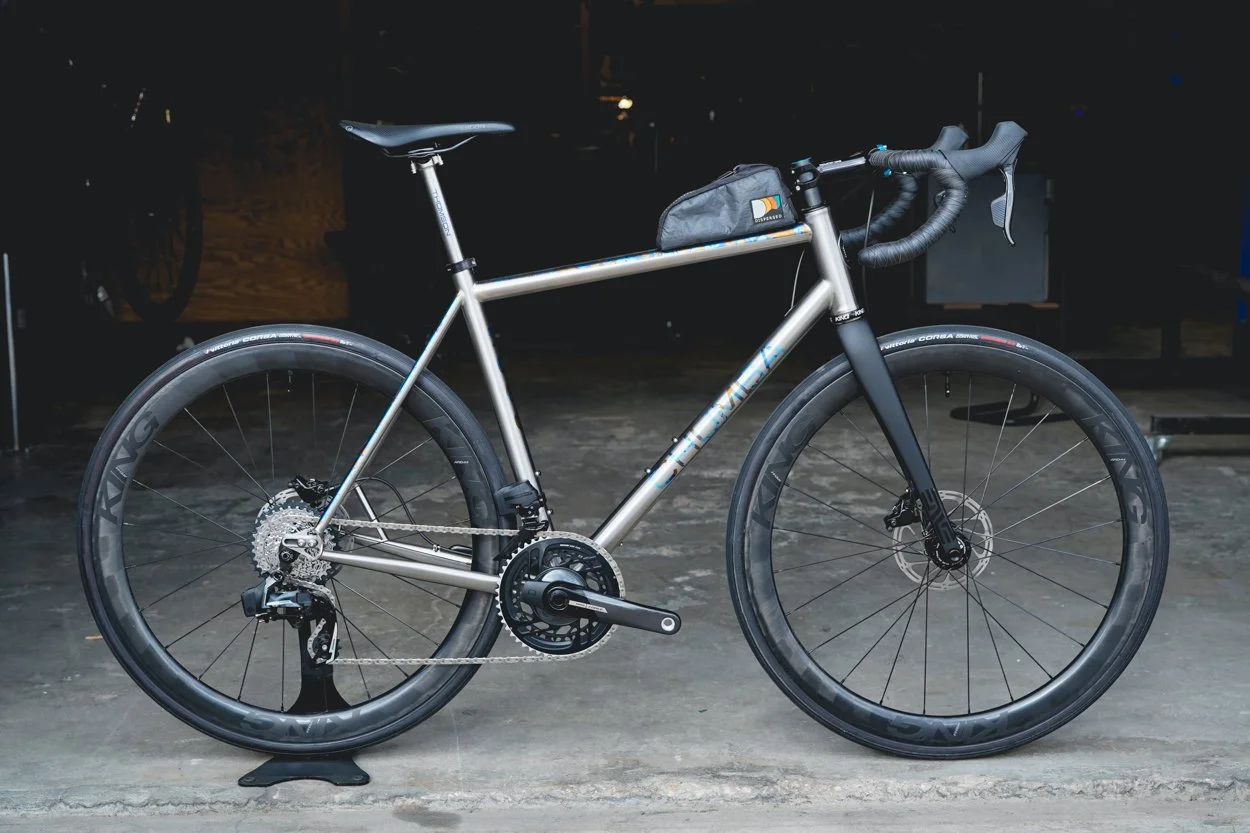

• The SOCO SL Titanium is designed to perform on varied road surfaces and lighter gravel courses where a faster geometry is warranted.

• Reach, head tube and seat tube angles place the rider in an effective position to ride efficiently over varied surface types.

• Full custom geo is available for those seeking a custom fit.

• The titanium tube-set is tuned for weight savings and responsiveness, fast acceleration with stable handling both climbing and descending.

• Compared to the SOCO steel frame, the titanium has similar dampening capabilities, but returns to its original position faster resulting in a responsive feel.

• Size specific geometry changes fine tune the balance point for cornering and maximize fit performance.

• Handmade to order with many customization options.

• Built from domestically sourced Aerospace Titanium 3/2.5 Tubing.

• Paragon Machine Works Flanged Adjustable Sliding Dropouts.

• PMW Machined Head Tube for tapered forks

• PMW T47 Threaded 68mm external cup bottom bracket.

• Custom options for internal routing inside the headtube or outside the head tube. Or use our standard clean & thoughtful external cable routing.

• Maximum tire and drivetrain clearances for a wide range of options and mud clearance.

• All tubes are heat sunk and argon purged when welded to prevent distortion and material thinning.

• Three bottle locations and top tube bag mounts included.

The SOCO All Road bike is designed to be extremely compatible with a wide range of tire sizes and drivetrains. Frames come with dropout inserts, rear axle and seatpost clamp.

• Fork: Compatible w/ 382mm axle to crown ENVE AR fork or 380mm ENVE In-route Fork. Recommended in 47mm offset

• Headset S.H.I.S.: ZS44 Upper/ EC44 Lower for Tapered 1.25”, 1.5” or Straight Forks

• Hub Spacing: 100x12 Front / 142x12 Rear

• PMW Sliding Dropout Options: Geared, single speed, thru axle or quick release

• Rear Axle: 142x12x1.5 thread pitch (164mm total length) (comes with frame)

• Bottom Bracket: 68mm T47 Threaded for External Bottom Bracket

• Seat Post: Post 27.2mm / Clamp 34.9mm (clamp comes with frame)

• Flat Mount Braking: FM 160mm

• Cable Routing: Standard cable routing goes under the down tube via PMW bolt on cable guides and then onto the chain-stays. Custom internal routing and In-route options.

• H20 Capacity: 3 bottles on all sizes

• Fenders: Optional customization

• Rack mounts: Optional customization

Chainrings/Cranks:

• 1x 46T round max

• 1x 44T oval max

• 2x 52x38T max

• Chain-line: Road Standard or Road Wide

• Q Factor Clearances: Clears Dura Ace and Red AXS cranks

• Powermeter: We recommend SRAM or Rotor

Suggested Stem Lengths:

• On size 50cm (50-70mm)

• On size 52cm (60-90mm)

• On sizes 54-56cm (70-120mm)

• On sizes 58-62cm (90-130mm)

Max Tire Clearances:

• 700 x 30 to 700 x 40 with mud clearance to spare, ENVE forks are max 38mm for AR and 40mm for In-Route

The SOCO:

• Has a shorter chainstay length and wheelbase.

• Has a steeper head tube angle.

• Has a lower BB on select sizes.

• These attributes paired to the all road tires allow for a more planted bike that corners with grip and accelerates faster.

• On sizes 52 and up a larger down tube with less compliance in the front triangle for a more road focused ride quality. It’s still smooth and connected to the course, just more responsive by comparison.

New offering! Sliding dropouts come standard or in our customization menu add Paragon Machine Works’ brand new UDH Integrated FM Dropout.
